CREE CXB LED High Bay Specs & Data Sheet

  Authorized Distributor

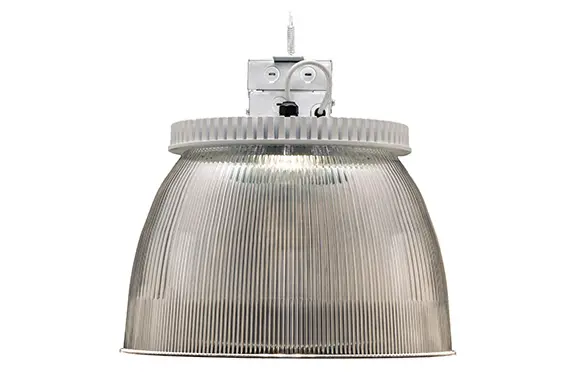

  Cree High-Bay CXB Series Spec Sheet

• one for one replacement for up to 400 Watt metal halide
• 160 Watt, 18,000 lumens  [operating temp: designed for 32 to 122F, 0 to 50C ]
• 240 Watt, 24,000 lumens  [operating temp: designed for 32 to 104F, 0 to 40C]
• CRI= 80
• CCT = 4000K or 5000K
• Voltage= 100-277 vac (347-480 vac option)
• Mounting= J-box, pendant, hook, or cord & plug
• Weight= 14lbs
• 0-10 volt dimming (standard)
• cULus listed, suitable for damp locations, driver is IP54, LED optics are IP65
• DLC qualified
• Limited Warranty= 10 years on luminaire

  Cree CXB Series Low Bay High Bay Luminaire Product Short
